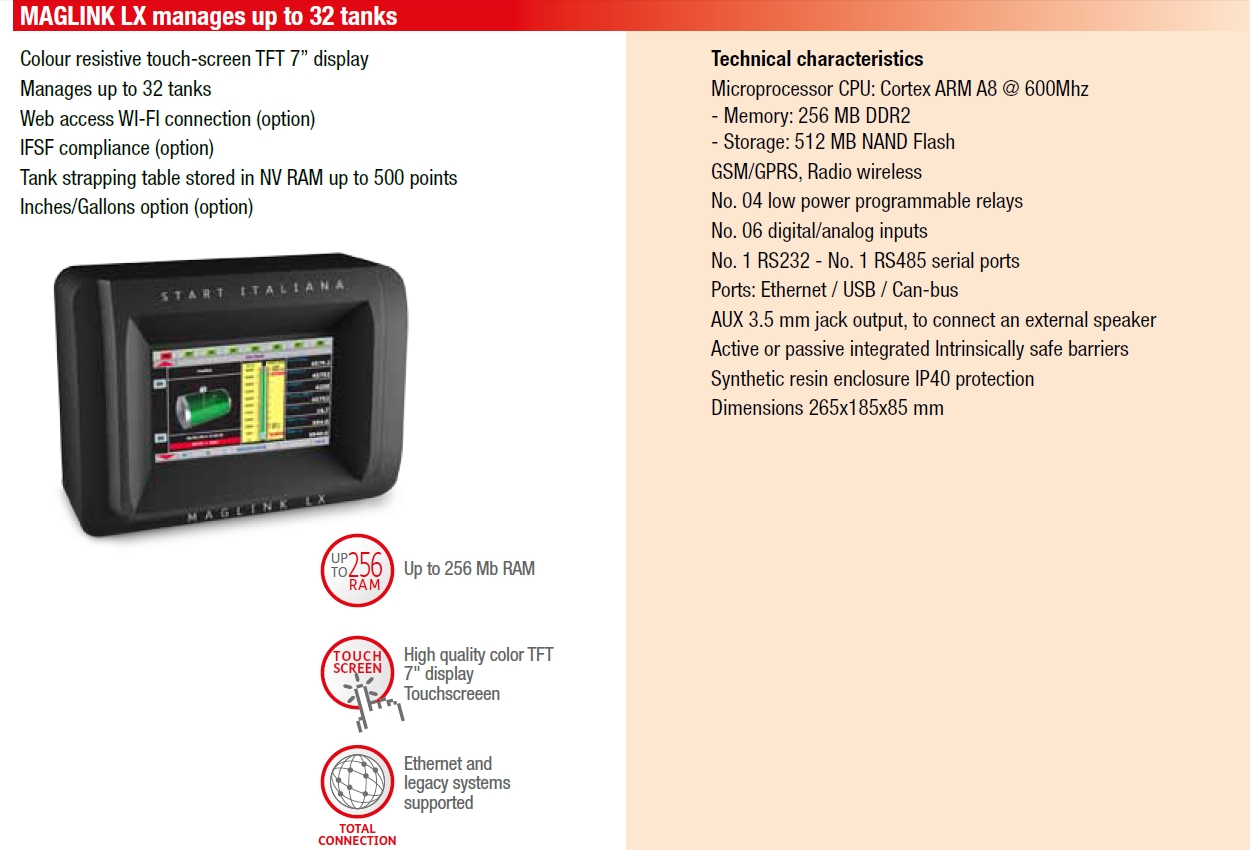

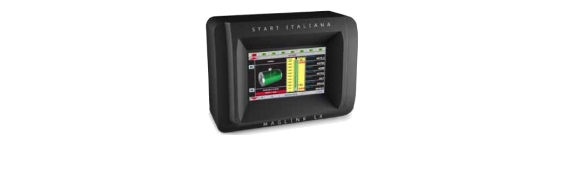

Maglink LX
Manages up to 32 tanks
Colour resistive touch-screen TFT 7" display
Web access WI-FI connection (optional)
IFSF compliance (optional)
Tank strapping table stored in NV RAM up to 500 points
Inches/Gallon option (optional)

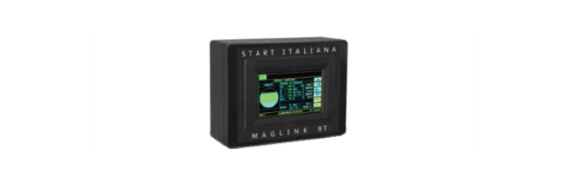

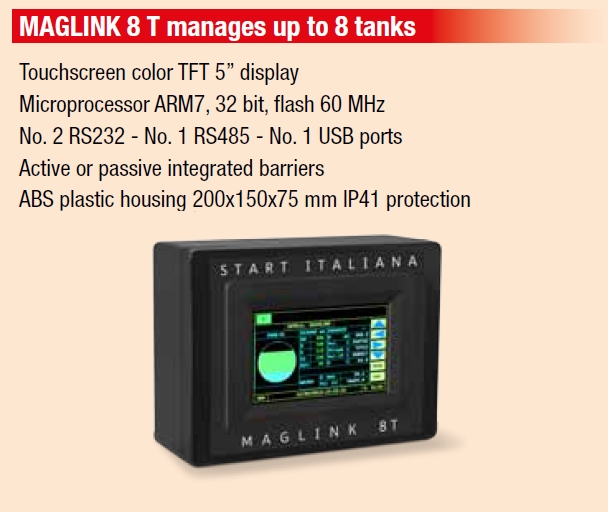

Maglink 8T
Manages up to 8 tanks
Touch-screen colour TFT 5" display
Microprocessor ARM7, 32 bit, flash 60 Mhz
No.2 RS232 - No.1 RS485 - No.1 USB port
Active or passive integrated barriers
ABS plastic housing 200x150x75 mm IP41 protection

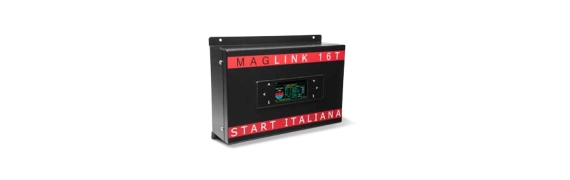

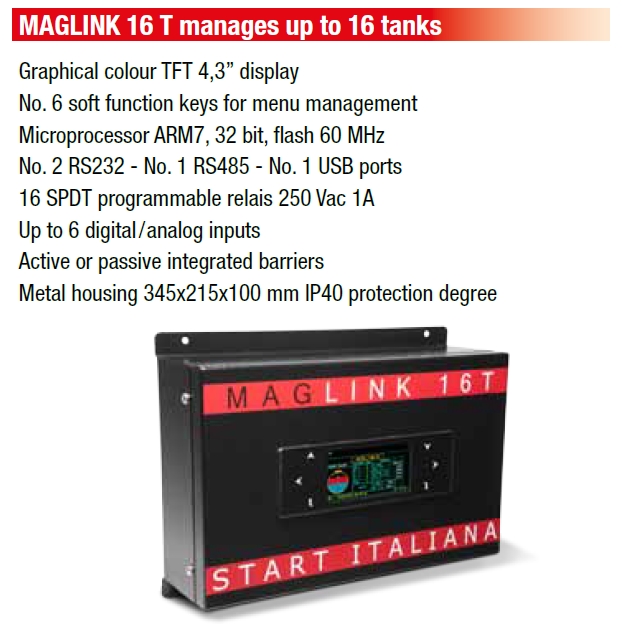

Maglink 16T
Manages up to 16 tanks
Graphical colour TFT 4,3" display
No.6 soft function keys for menu management
Microprocessor ARM7, 32 bit, flash 60 Mhz
No.2 RS232 - No.1 RS485 - No.1 USB port
16 SPDT programmable relais 250 Vac 1A
Up to 6 digital/Analog input
Active or passive integrated barriers
Metal housing 345x215x100 mm IP 40 protection

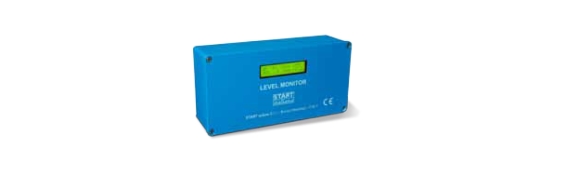

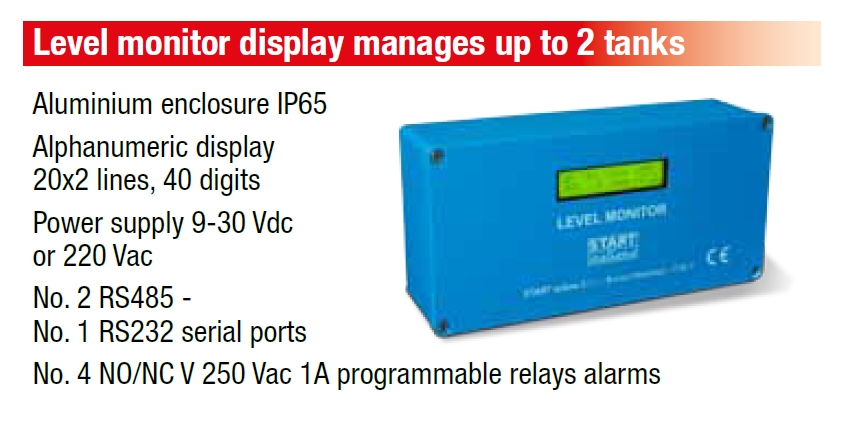

Level Monitor
Manages up to 2 tanks
Alphanumeric display 20x2 lines, 40 digits
Power supply 9-30 Vdc or 220Vac
No.1 RS232 - No.2 RS485
No.4 NO/NC V 250 Vac 1A programmable relay alarms

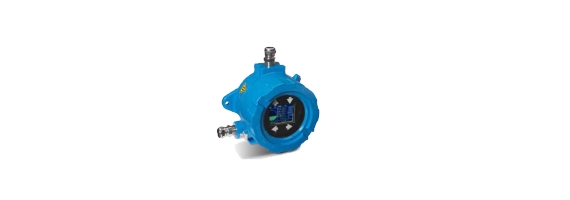

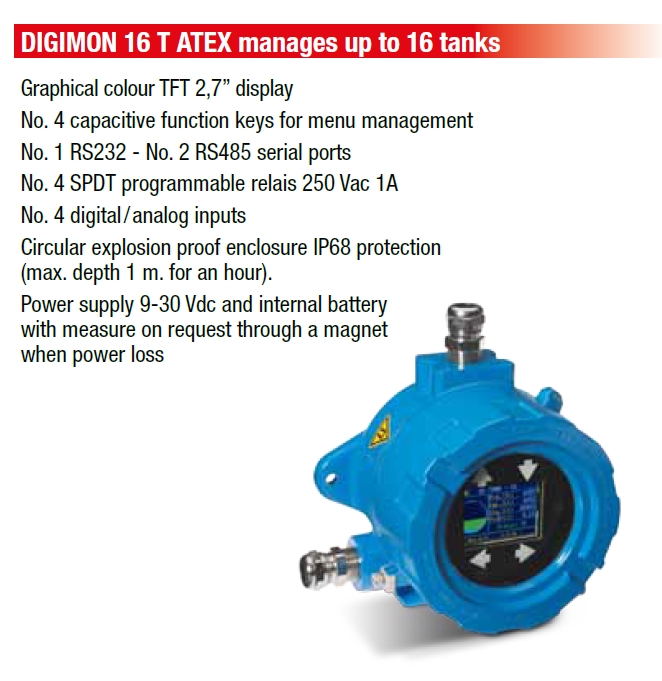

Digimon 16T
Manages up to 16 tanks
No.4 capacitive function keys for menu management
No.1 RS232 - No.2 RS485
No.4 SPDT programmable relais 250 Vac 1A
Circular explosion proof enclosure IP68 protection (max depth 1 m. for 1 hour)
Power supply 9-30Vdc and internal battery with measure on request through a magnet when power loss

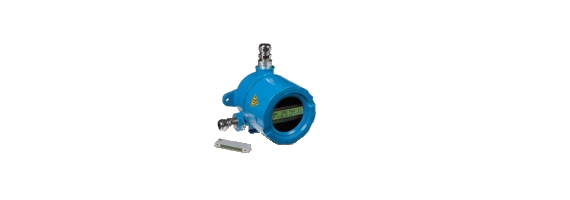

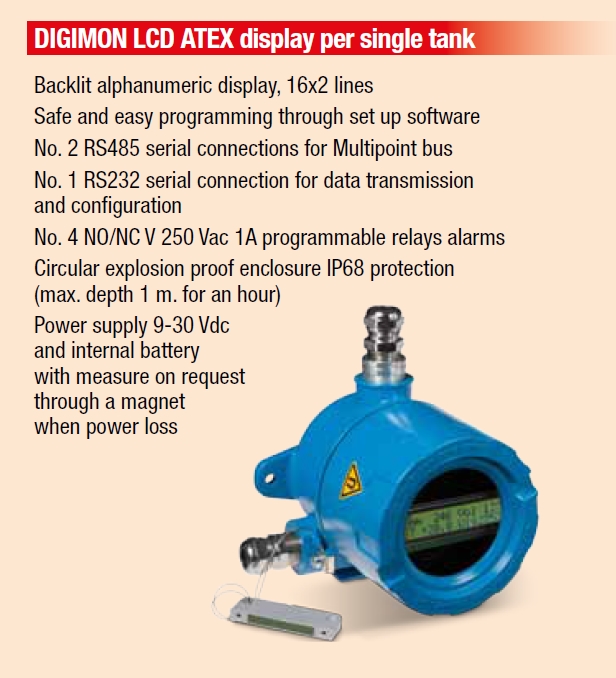

Digimon LCD
Manages single tank
Backlight alphanumeric display, 16x2 lines
Safe and easy programming through setup software
No.2 RS485 serial connections for multipoint bus
No.1 RS232 serial connections for data transmission and configuration
No.4 NO/NC V 250 Vac 1A programmable relay alarms
Circular explosion proof enclosure IP68 protection (max depth 1 m. for 1 hour)
Power supply 9-30Vdc and internal battery with measure on request through a magnet when power loss
