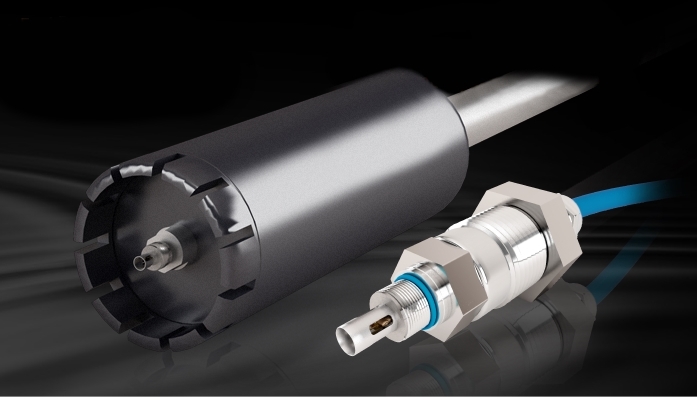

The DVD Sensor is equipped with an integrated TUNING FORK sensor that will directly and simultaneously measure the viscosity, density, dielectric constant, temperature of fuels. Relying on patented tuning fork technology, the sensor monitors the direct and dynamic relationship between multiple physical properties to determine the quality, condition and contaminant loading of fuels such as diesel biodiesel, gasoline, Jet fuel, kerosene, biodiesel concentration and urea quality. The multi-parametric analysis capability improves fluid characterization algorithms. The sensor provides in-line monitoring of fluids for a wide range of applications including fuel tanks, process lines and pressurized high flow conduits. A digital serial compliant protocol provides easy to connect interface to Consoles controller.
DVD FEATURES
Patented Tuning Fork Technology with high accuracy
Static and direct measurement, no moving parts, resistant to turbulence
No dead zone, full range level measurement
Rugged construction for high pressure and high flow environments
Proprietary corrosion and contaminant resistant coating for wetted parts
On-board microprocessor for real-time data analysis
Highly reliable and long term stability
ATEX Compliance, suitable for 0 zone
DVD APPLICATION
Density solution for retail and depots automation
Real time fuel quality
Biodiesel in diesel concentration
Anti-crossover fuels detection
Sump and Interstitial sensors with liquid discriminating (empty status / type of fuel / water)
